Ford Ranger LS Swap: Harness Guide & Tips

Isom Torphy 12 May 2025

Is your classic Ford Ranger XLT Ext Cab yearning for a heart transplant, craving the raw power of an LS engine? Embarking on an LS swap can transform your truck, but navigating the wiring can feel like untangling a Gordian knot.

The quest to breathe new life into a 1998 Ranger XLT Ext Cab, initially equipped with a 3.0 V6 automatic, often leads enthusiasts down the exciting, yet sometimes treacherous, path of an LS swap. This journey involves more than just sourcing a powerful LS engine, like the LS1, and mating it to your truck's chassis. It demands a meticulous understanding of the electrical intricacies, specifically the wiring harness, that serve as the lifeblood of your new powertrain. The choice of the right harness is paramount. As with any complex mechanical or electrical project, a fundamental understanding is the key to success. Using the correct harness for your engine type ensures proper sensor compatibility and engine management, which means your carefully selected LS engine will perform as intended. And as we delve into the details, consider this: can an LS swap wiring harness be used for both automatic and manual transmissions? Yes, in many cases, the harness is designed to accommodate either transmission type.

The availability of specifically designed harnesses for the Ford Ranger simplifies the process. These pre-made solutions save you countless hours and the potential headaches of a custom build, allowing you to focus on the other aspects of the swap. Features like custom-built fenderwell headers, (with primary tubes of 1 3/4 inches, and three collectors), and AEM components highlight the advanced nature of these projects. Such customization allows for superior performance and integration with the engine. Due to the fact that many kits are fully welded, this permits a greater range of movement at the engine block plate, easing any adjustments during installation. The design of the headers allows for optimal clearance and fitment, especially when using long tube headers. The installation often involves components like frame mounts, all designed to make the process as seamless as possible.

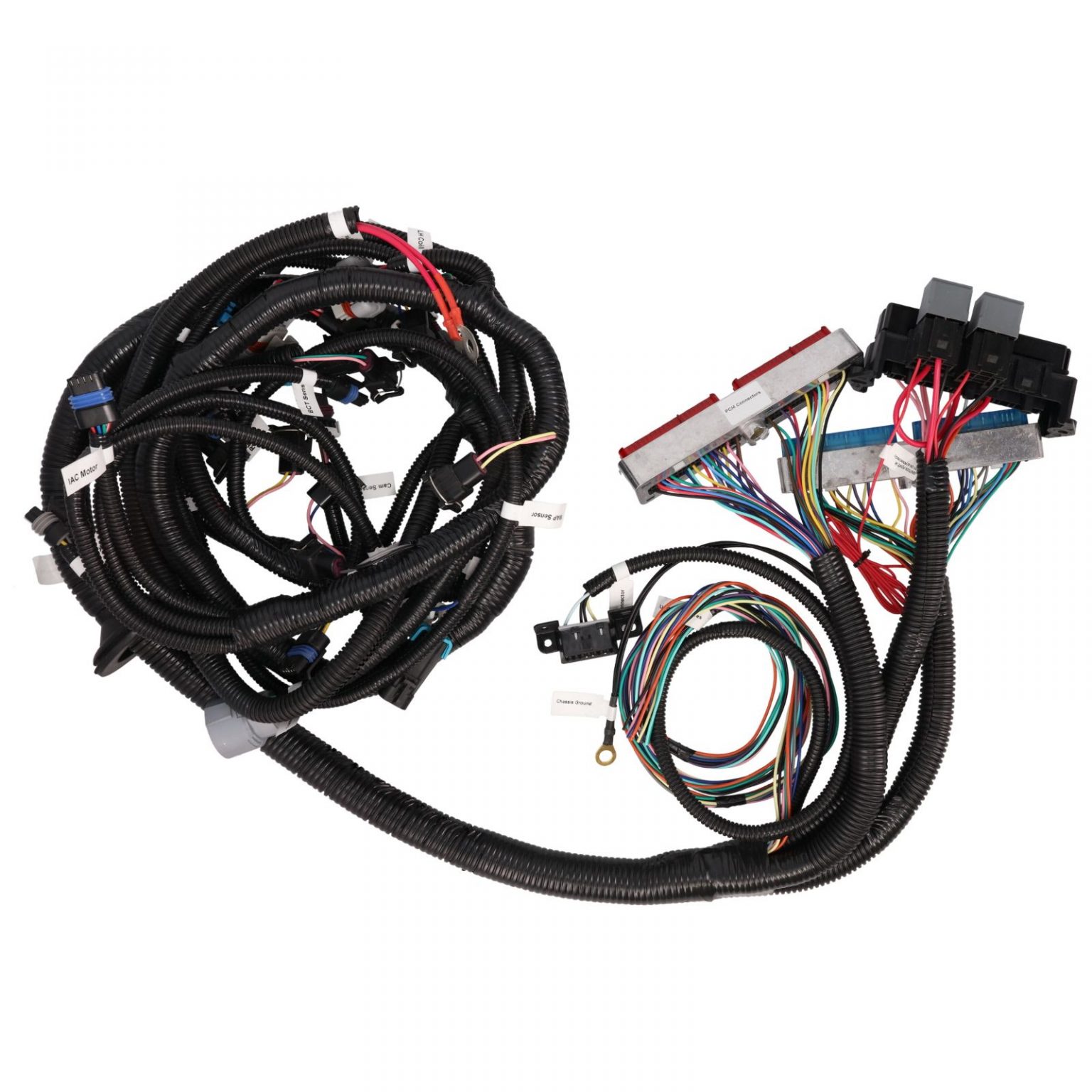

The critical aspect of an LS swap is the wiring harness. The factory wiring in your Ranger isn't equipped to handle the demands and functionality of an LS engine. Swap Specialties standalone wiring harnesses have established a strong reputation for their quality. They hand-build every harness to fit your specific project needs, making installation cleaner and more reliable. Utilizing the highest quality wire, new OEM connectors, and weatherproof fuse and relay boxes, they ensure a durable and dependable system. This integration streamlines the installation, boosts reliability, and fosters seamless communication between your LS engine and the ECU (Engine Control Unit). The option to acquire a "turnkey" kit simplifies the whole task. In such a setup, the engine can start and run after hooking up a battery and fuel pump. These kits are designed to be completely swap-ready.

The conversion process can be broken down into several key steps. First, you'll need to place the LS engine into the engine bay, using blocks, jacks, or whatever is necessary to get it in position. Then, the electrical system needs to be addressed. Either building a standalone harness from scratch or purchasing a pre-made unit, as mentioned above. The first step involves finding a wire that's hot when the key is on and connecting it to trigger a relay for the engine harness. Then, the crank wire and battery need to be connected, and finally, a fuel pump must be added to your tank to supply fuel to the engine.

It is crucial to address the legal implications of engine swaps, especially regarding emissions and compliance with local regulations. It is a must to know that, certain states like California require that the engine is of the same year or newer than the vehicle. If your original vehicle is a 1998 model, the engine that you install must also be a 1998 model or newer. This necessitates the correct approach to documentation and ensuring the engine's compliance.

While some enthusiasts might consider using the Explorer 5.0L wiring, the more modern, LS-specific standalone harnesses offer significant advantages in terms of simplicity, reliability, and performance. Several companies offer complete, plug-and-play solutions. Conversion mounts like the Dirty Dingo "Ford Upgrade" fox body LS1 swap conversion mounts can further simplify the process. These mounts require no cutting or fabrication. The conversion mounts provide adjustment capability, allowing for fine-tuning of the engine's position within the engine bay.

In the video, the creator starts the LS wiring process on the Ranger. This is the same wire used in factory automobile harnesses. When a splice is made for the harness, the manufacturer utilize splices that are sonically welded together, just like a harness for a factory vehicle. For some of the builders, one thing to think about is using the Chevy gauge cluster, wiring harness and other components and then cutting and splicing them into the Ford system. Other modifications include the need for modifications to the engine bay, custom radiators, and the custom crossmembers. The decision to do this kind of job is very difficult, it takes time, money, and skill. However, it is a rewarding experience.

For those seeking the ultimate in performance and reliability, Swap Specialties offers Gen4 58X standalone wiring harnesses that are renowned for their exceptional quality. These harnesses are designed to form fit your engine, providing a clean, professional look and operation. Each harness is hand-built to fit perfectly and is tested before shipping. They also offer 24X standalone wiring harnesses for GM Gen3 4.8L, 5.3L, 5.7L, and 6.0L engines. These harnesses are renowned for their quality. Each harness is hand built to fit perfectly and then actually engine run tested and computer checked before we ship it out to you. Swap Specialties uses the highest quality wire, brand new OEM connectors, and a weatherproof fuse and relay box, ensuring a long-lasting, dependable electrical system.

LS Swap Essentials	Details
Vehicle	1998 Ford Ranger XLT Ext Cab
Original Engine	3.0L V6, Automatic
LS Engine Options	LS1 (Specific examples) & Other LS Series Engines (4.8L, 5.3L, 5.7L, 6.0L)
Key Components	LS Intake, Injectors, Fenderwell Headers (Custom Built), AEM Components, LS Swap Wiring Harness, Conversion Mounts, Fuel Pump
Wiring Harness Types	Standalone (Swap Specialties), OEM-Style Connections, Weatherproof Fuse & Relay Box
Conversion Mounts	Dirty Dingo "Ford Upgrade" (Fox Body), Adjustable
Transmission Compatibility	LS Swap Harnesses often compatible with both Automatic & Manual Transmissions
Important Considerations	Sensor Compatibility, Engine Management, Header Clearance, Fuel System Upgrades, Emission Compliance (California & Other States)
Key Benefits	Increased Horsepower, Improved Reliability, Modern Engine Technology, Enhanced Performance, Customization Options
Installation Steps (Simplified)	Engine Placement, Standalone Harness Installation/Connection, Fuel System Upgrade, Ignition System Setup, ECU Tuning/Calibration
Professional Advice	Consult with experts, and seek advice from those who have done the project before.
